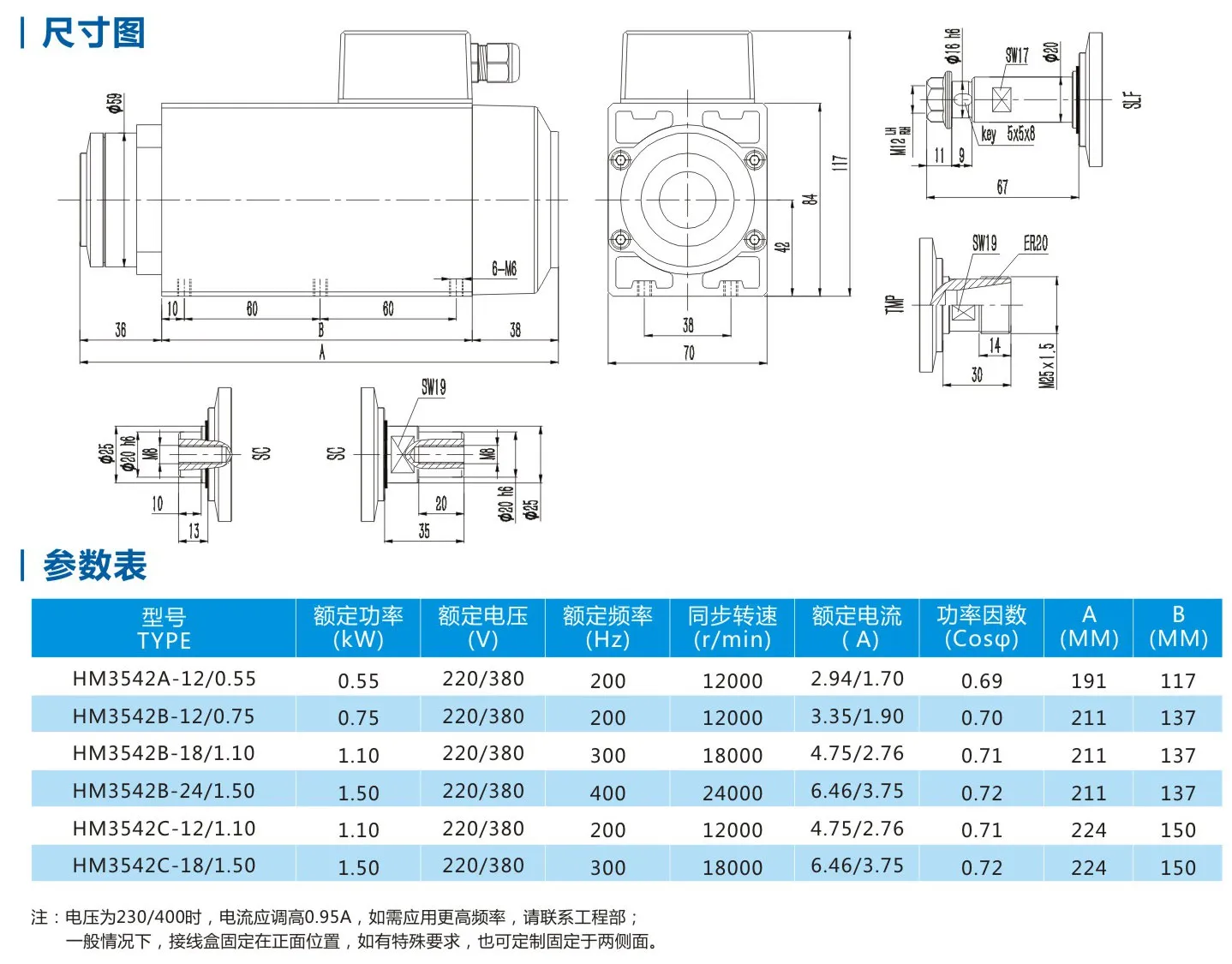

High speed motor HM3542

high performance
Adopting high-strength brushed alloy aluminum body and angular contact bearings, it offers excellent heat dissipation (rated current operating temperature ≤48 ° C), quiet operation (≤38 decibels at 12000 rpm), and high accuracy (radial and axial runout coefficients < 0.01%).
Wide parameter range
: Power coverage from 0.55kW to 1.5kW, rotating speed from 3000rpm to up to 46000rpm (special models), to meet different processing requirements.
A variety of shaft methods can be customized
: Optical axis, chuck, optical axis with keyway and other types, we can customize production.
reliable protection
All series are equipped with IP54 dust and moisture protection grade, suitable for harsh industrial environments.
diversified application
Applicable to woodworking carving, metal cutting, plastic/PVC processing, precision medical apparatus, electronic appliances and other five industries.
