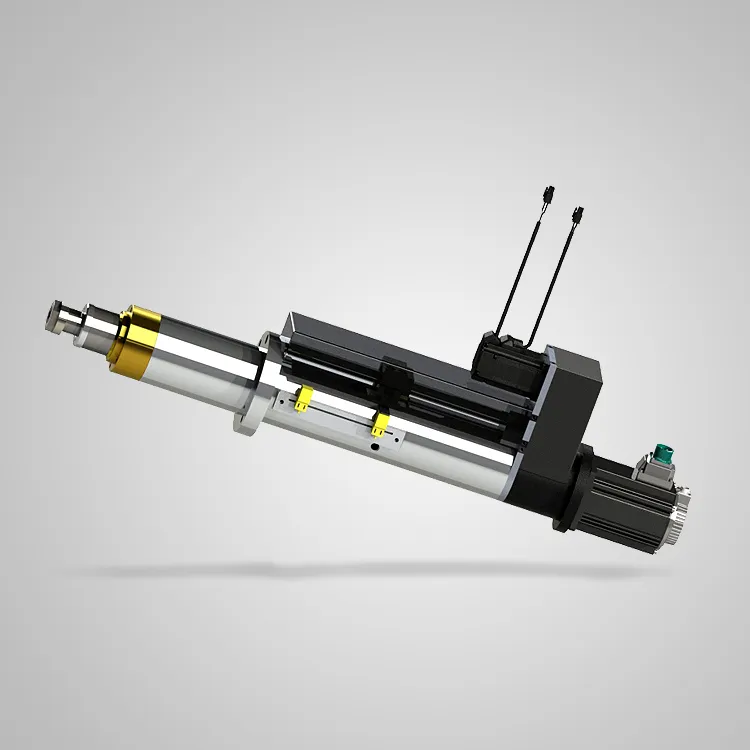

Drilling spindle unit BD05

Drilling power head BD5
▶ Specifications Drilling/Tapping Capacity (S45C) φ 1.5-φ 18 mm

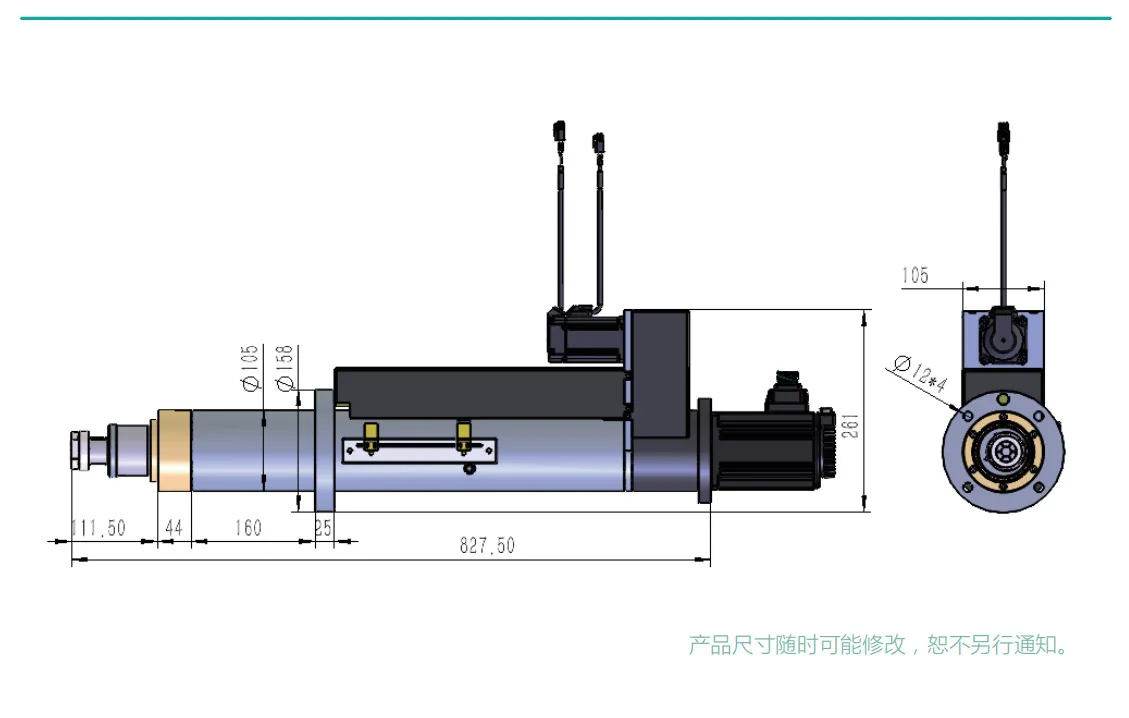

Product parameters
▶ Specifications
| Drilling/Tapping Ability | Drilling / Tapping Capacity(S45C) | φ1.5-φ18 / M2-M14 (S45C) |
| clamping capacity | Clamping Capacity | ER25 (Ø1-Ø16) |
| maximum travel | Max. Stroke | MAX 100mm |
| Machinable tooth pitch | Thread Pitch | Arbitrary setting of numerical control |
| weight | Weight | 42Kg (excluding motor) |
| Whether to maintain | Whether to maintain | maintenance free |
| Transmission mode | Pulley type | HT.D.-5M380*20 |
| Maximum speed | Max. RPM | 6000rpm |
| Servo motor power | Servo power | 1.5kw/0.75kw,220V |
▶ consumables
| Spindle bearing | Spindle Bearing | 7202C*2,7201C*2 |
| Pulley bearing | Pulley Bearing | 6204C*2 |
| oil seal | Seal | DKB-70,90 * 141 |
▶ processing capacity
| Model | RPM | Single and multi-axis machining capabilities | Stroke adjustment range (mm) | ||||||||||
| BD05 | drilling | Tapping | 1 axis | 2 axis | 3 axis | 4 axis | maximum travel | fast forward travel | Cutting stroke | ||||
| aluminum | steel | aluminum | steel | aluminum | steel | aluminum | steel | ||||||
| Max 5000 | Max 3000 | M16 | M 14 | M14 | M12 | M12 | M10 | M11 | M8 | 0~120 | 0~80 | 0~80 | |
Note: The maximum rotation speed depends on the power unit speed, and the working stroke fast-forward and processing stroke can be freely set in the YSA power head control system.
● This product with numerical control system solution, visual parameter setting, easy and flexible operation
● Can be preset to work, the first and second multiple processing origins to improve processing efficiency, and can also be used as upper and lower limit points to ensure safe use
● This product can be equipped with a high-speed motor, 10000rpm, for milling planes or chamfering
● High-precision overall structure design, greatly reducing spindle runout, improving product rigidity, suitable for fine holes, such as 0.75MM
● Various bases can be selected, stable and simple, suitable for various assembly methods
● The entire chassis has been ground, and the chassis can be used as a benchmark
